Home > Products > Olive Oxygen Concentrator > High Flow Oxygen Concentrator > 15L Oxygen Concentrator

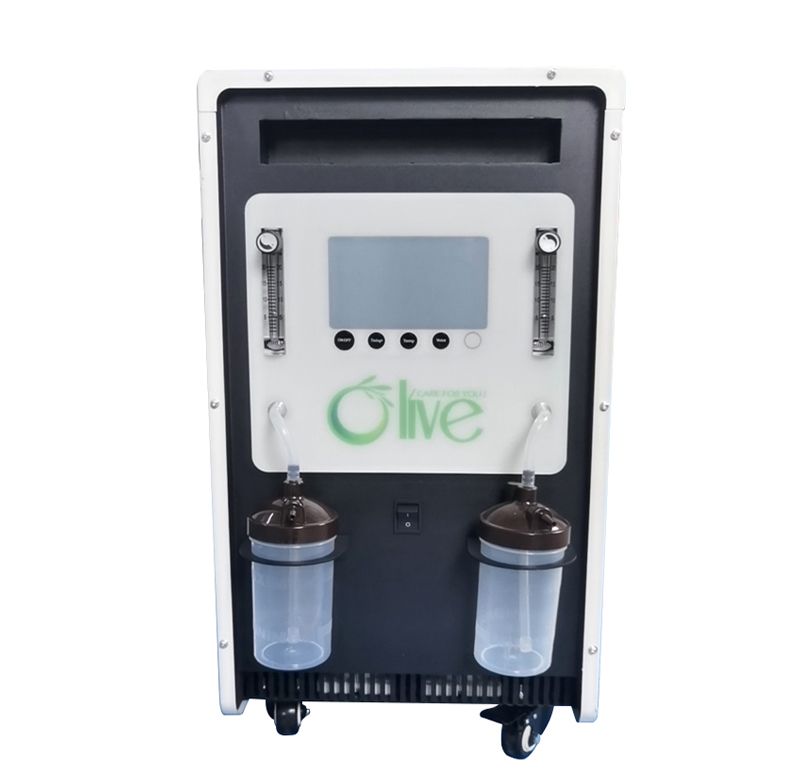

Olive 7x24h Continuous Flow High Purity Medical Grade 15L Oxygen Concentrator

Model Number: OLV-20, OLV-20H

Product highlight: Up to 96% high oxygen concentration, can be used for two patients

Product features: Stabel oxygen supply, large LCD display, timing function, easy to use

Application: For clinic, hospital, especially they are suitable for hospital mini oxygen central system.

Customization: OEM and ODM services are available according to your needs, ideas and samples.


For business OEM/ODM bulk sales service, please inquire us right now.



Working principle of high concentration oxygen concentrator

Working principle of high concentration oxygen concentrator


The air compressor removes oil, dust and other solid impurities and most of the gaseous water through the pretreatment system, and enters the adsorption tower equipped with molecular sieve. The nitrogen, carbon dioxide, and water vapor in the air are adsorbed, and the cycle cycle of decompression and desorption, Make compressed air alternately enter the adsorption tower to achieve separation, thereby continuously producing high-concentration oxygen

Product parameter

Product parameter


Model No.OLV-15
Rated Flow0-20L/min
Purity≥93%±3%
Output Pressure20-60Kpa
Power Consumption1600VA
Noise58 dB(A)
Gross Weight71Kg
Size940*400*840MM
Working SystemContinuous flow



Feature

1. PSA oxygen producing method makes this oxygen concentrator safe and economical. It can work anywhere oxygen and electricity are available.

2. Concentration of the oxygen produced by our oxygen generation plant can be higher than 90%. The flow rate is adjustable in the range of 0-40L/min.

3. Large LCD display on our oxygen producing machine can indicate the operating pressure, internal working temperature, present operating time, accumulated working time and the preset time.

4. Designed with timing function, our oxygen concentrator will stop running automatically when it reaches to the preset time.

5. Oxygen concentration status indicator allows the users to monitor oxygen concentration in real time.

Olive 7x24h Continuous Flow High Purity Medical Grade 15L Oxygen Concentrator
Olive 7x24h Continuous Flow High Purity Medical Grade 15L Oxygen Concentrator

90-96%

High Oxygen Concentration

20L

Dual Flow Oxygen Concentrator

48Hours

Continuous Operation

2Patients

Provide Oxygen For Two Patients

Request a quote

Annual sales of 80000 units

Olive has been focusing on the production and research and development of medical oxygen concentrators for a long time, and has continuously broken through the key areas of oxygen concentrators and obtained a number of patents and domestic and foreign recognitions.

Annual sales of 80,000 units
