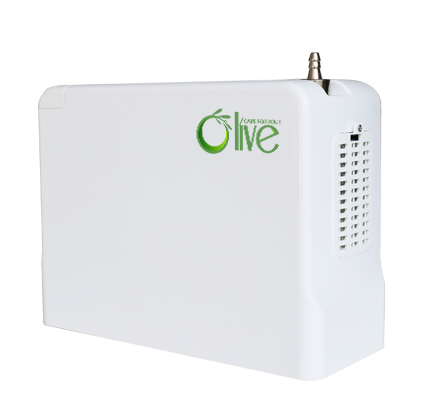

Model Number: OLV-POC5
Product highlight: Produce high purity oxygen, Can be used at home, car and outdoor.
Product features: Extremely quiet, small, light, little maintenance, large screen display
Application: Suitable for the use of medical treatment, health care, spots, plateau travel
Customization: OEM and ODM services are available according to your requirements.
For business OEM/ODM bulk sales service, please inquire us right now
Working principle of high concentration oxygen concentrator
The air compressor removes oil, dust and other solid impurities and most of the gaseous water through the pretreatment system, and enters the adsorption tower equipped with molecular sieve. The nitrogen, carbon dioxide, and water vapor in the air are adsorbed, and the cycle cycle of decompression and desorption, Make compressed air alternately enter the adsorption tower to achieve separation, thereby continuously producing high-concentration oxygen
Product parameter
Product parameter
| Model | OLV-POC5 |
| Powder | AC100-240V 50-60Hz DC12-24V |
| Size | 225mm*90mm*165mm |
| Weight | 2.35kg (including battery） |
| Rated Equivalent Oxygen Flow | 1、2、3、4、5L/min adjustable |
| Oxygen Concentrations | 90% - 96%V/V |
| Noise | Less Than 40db |
| Display Screen | 3.2 ”TFT |
| Outlet Pressure | 120kPa |
| Warranty | Main Unit 2 years Battery and molecular sieve 1 year |
Feature
1.Extremely quiet with a noise level at 39 decibels
2.Besides normal filters charging and cleaning, there is no other maintenance
3.The whole machine only weighs: 2.3KG
4.Fashionable carrying case with adjustable shoulder strap
5.Large screen display intelligent alarm
6.Product Application: Medical Treatment, Health care, Spots, Plateau Travel
48 Hours
Continuous Operation
Low Noise
Less Than 45 dB
90-96%
High Oxygen Concentration
1-5L
Oxygen Flow Adjustable
Request a quote
Annual sales of 80000 units
Olive has been focusing on the production and research and development of medical oxygen concentrators for a long time, and has continuously broken through the key areas of oxygen concentrators and obtained a number of patents and domestic and foreign recognitions.
