Model Number: OLV-B1
Product highlight: Three power supplies:220V/110V, 12V(Car use), Rechargeable battery
Product features: Adjustable continuous flow, Rechageable battery, Low Noise
Application: suitable for the use of health care
Customization: OEM and ODM services are available according to your needs, ideas and samples.
For business OEM/ODM bulk sales service, please inquire us right now
Working principle of high concentration oxygen concentrator
The air compressor removes oil, dust and other solid impurities and most of the gaseous water through the pretreatment system, and enters the adsorption tower equipped with molecular sieve. The nitrogen, carbon dioxide, and water vapor in the air are adsorbed, and the cycle cycle of decompression and desorption, Make compressed air alternately enter the adsorption tower to achieve separation, thereby continuously producing high-concentration oxygen
Product parameter
Product parameter
| Model No | OLV-B1 |
| Flow Rate | 0-5L/min |
| Input Power | 90W |
| Purity Oxygen | ≥90%±3%(1LPM) |
| Power Supply | AC220V±22V, 50Hz±1Hz / AC110V±15V, 60Hz±1Hz |
| DC12V | |
| Rechargeable Battery 10000mAh(1H), 13000mAh(1.5H) | |
| Output pressure | 20kPa~60kPa |
| Noise | Less than 40db |
| Net Weight | 5kg |

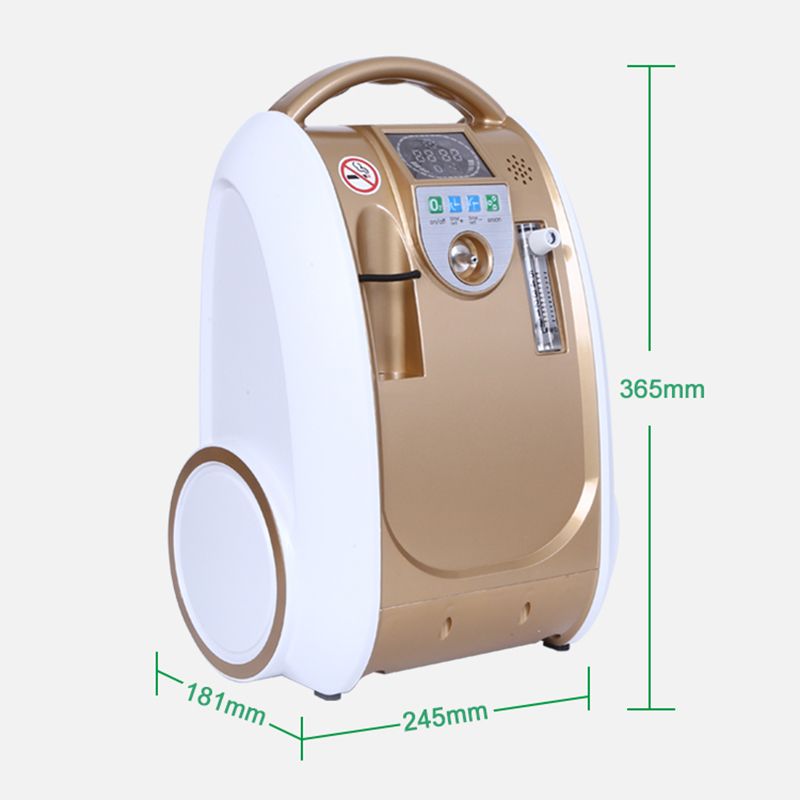

| Dimension: | 245*181*365 (mm) |
| Warranty | 1 years |
| Battery Duration | 60 mins or 90 mins |
| Battery Rechage Time | 4 hours recharge to achieve 90% capacity |
Feature
Oxygen flow: continuous flow, 0-5L/min adjustable
Light weight: 5Kg
Three power supplies:220V/110V, 12V(Car use), Rechargeable Lithium-ion Battery
Low noise: less than 40dB
Anion function
Integrated designing
Good quality material
48 Hours
Continuous Operation
Low Noise
Less Than 45 dB
90-96%
High Oxygen Concentration
1-5L
Oxygen Flow Adjustable
Request a quote
Annual sales of 80000 units
Olive has been focusing on the production and research and development of medical oxygen concentrators for a long time, and has continuously broken through the key areas of oxygen concentrators and obtained a number of patents and domestic and foreign recognitions.
